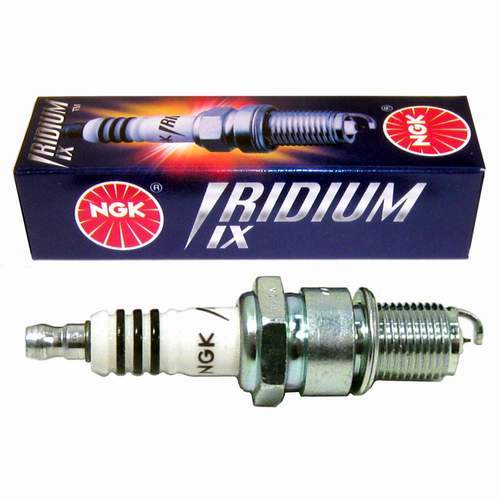

NGK IRIDIUM PLUG BPR5EIX
NGK IRIDIUM PLUG BPR5EIX
Couldn't load pickup availability
NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
· Shell
· Thread Diameter14mm
· Thread Pitch1.25mm
· Seat TypeGasket
· Reach19mm (3/4")
· Hex Size13/16" (21mm)
· Terminal TypeSolid
· Gap.031" (0.8mm)
· Center Electrode
· MaterialIridium
· TypeFine Wire
· Size0.6mm
· ProjectionProjected
· Ground Electrode
· MaterialNickel
· TypeStandard
· ShapeTaper Cut
· Quantity1
· Specifications
· ResistorYes
· Resistor Value5k Ohm
· Heat Range5
· Torque SpecsCast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
· Part Information
· BrandNGK/NTK
· Warranty60 Days
· Longevity50k Miles
FOR MODEL: THUNDERBIRD 500/500X/ CLASSIC/ BULLET/ CONTINENTAL GT 535CC
